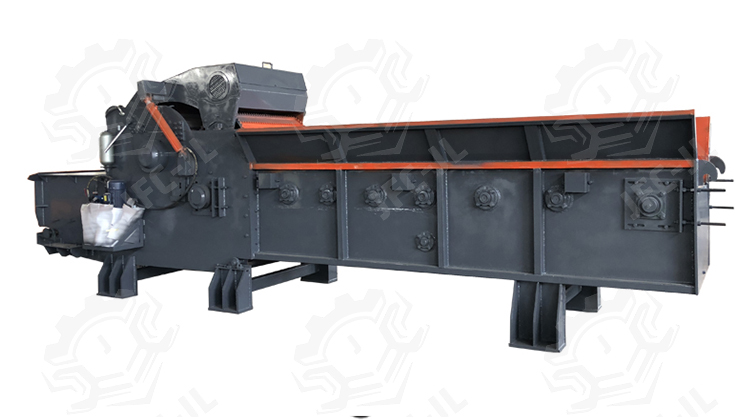

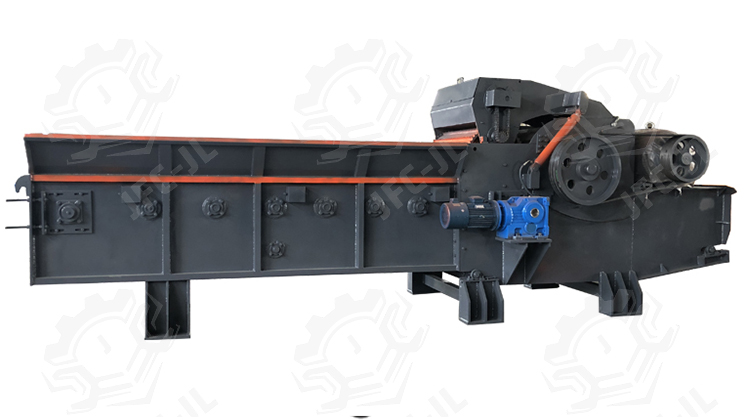

The comprehensive crusher have two types, Stationary type and Mobile type with diesel engine or motor.
The complete unit include with host, raddle conveyor for feeding, belt conveyor for discharge, and Intelligent numerical control system, which has reasonable structure, simple operation and high automation.
Model | Main Power (kw) | Rotor Dia. (mm) | Chain Conveyor (m) | Capacity (t/h) | Dimension (mm) |
1000-500 | 110 | ⌀650 | 0.9×10 | 9 | 7320×2300×2300 |
1000-800 | 132 | ⌀800 | 0.9×10 | 10 | 7320×2300×2400 |
1250-600 | 132 | ⌀650 | 1×10 | 11 | 7480×2380×2300 |
1250-800 | 160 | ⌀800 | 1.1×10 | 12 | 7500×2380×2530 |
1300-600 | 132 | ⌀650 | 1.2×10 | 12 | 7980×2520×2350 |
1300-800 | 160 | ⌀800 | 1.2×10 | 15 | 7980×2520×2530 |
1400-800 | 185 | ⌀800 | 1.3×10 | 18 | 7980×2720×2509 |
1600-800 | 250 | ⌀800 | 1.5×10 | 22 | 9380×2980×2380 |
1600-1000 | 315 | ⌀1050 | 1.5×10 | 28 | 9380×2980×2600 |
1800-1000 | 350 | ⌀1050 | 1.7×10 | 35 | 9500×3200×3100 |
