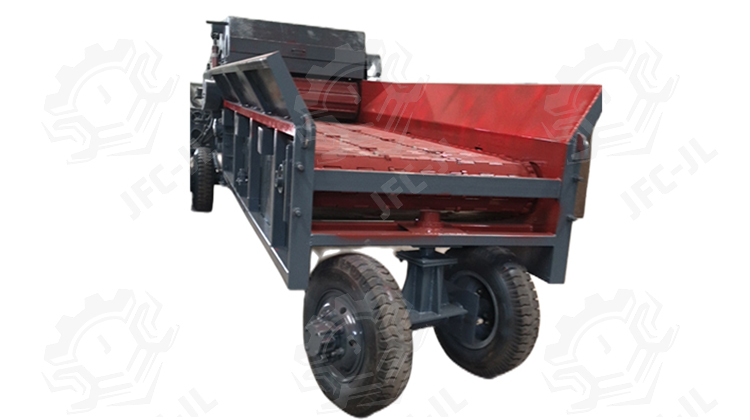

The portable diesel comprehensive crusher is widely used in crushing various raw materials.
It consist of host, chain plate, feeding and outlet system, intelligent electrical control. The motor drives the rotor of the crusher to run at high speed, so that the machine generates high-speed airflow to produce high-strength impact force, compression force, and cutting force on the crushed materials, and achieves unique crushing functions.
Model | Main Power (kw) | Rotor Dia. (mm) | Chain Conveyor (m) | Capacity (t/h) | Dimension (mm) |
1000-500 | 110 | ⌀650 | 0.9×10 | 9 | 7320×2300×2300 |
1000-80 | 132 | ⌀800 | 0.9×10 | 10 | 7320×2300×2400 |
1250-600 | 132 | ⌀650 | 1×10 | 11 | 7480×2380×2300 |
1250-800 | 160 | ⌀800 | 1.1×10 | 12 | 7500×2380×2530 |
1300-600 | 132 | ⌀650 | 1.2×10 | 12 | 7980×2520×2350 |
1300-800 | 160 | ⌀800 | 1.2×10 | 15 | 7980×2520×2530 |
1400-800 | 185 | ⌀800 | 1.3×10 | 18 | 7980×2720×2509 |
1600-800 | 250 | ⌀800 | 1.5×10 | 22 | 9380×2980×2380 |
1600-1000 | 315 | ⌀1050 | 1.5×10 | 28 | 9380×2980×2600 |
1800-1000 | 350 | ⌀1050 | 1.7×10 | 35 | 9500×3200×3100 |
