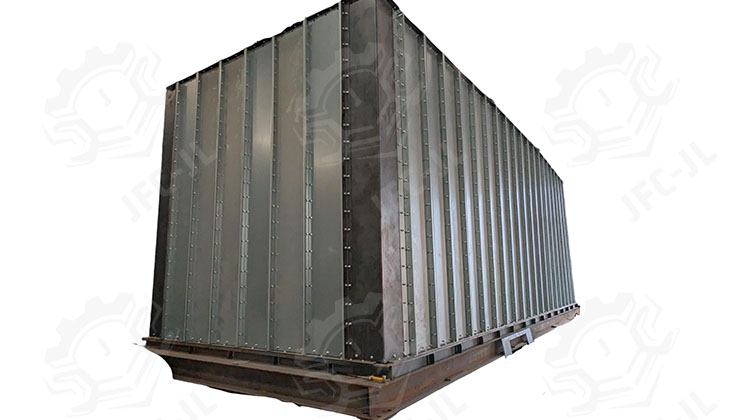

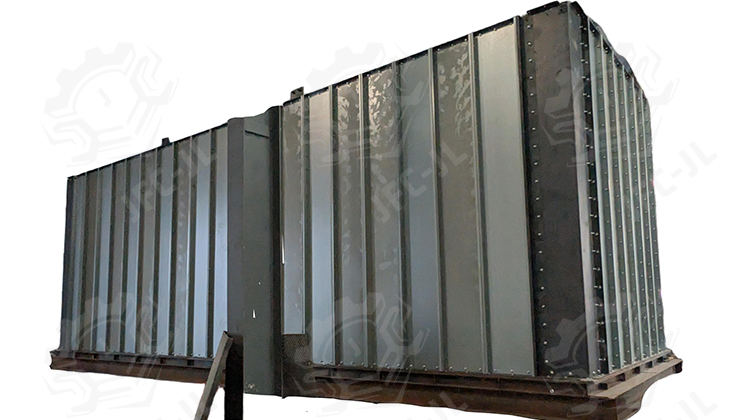

The hydraulic silo is special designed for sealed material storage, like wood pellets, wood chips, ect.
The application of the hydraulic silo enables sealed material storage. This design eliminates the poor working environment and operational disruptions caused by open material stacking, effectively suppresses dust emission, and cuts down the costs of forklift and manual handling. A flameproof vent is installed on the top of the silo, which significantly reduces the risk of dust explosions.
Volume (m3) | Type | Total Volume (m3) | Power (kw) | Capacity (t/h) | Dimension (m) |
1-100 | 1 hydraulic station + 2 hydraulic cylinders | 53 | 7.5 | 1-3 | 2.5×6×3.58 |
38 | 7.5 | 1-3 | 2.5×6×2.58 | ||
71 | 7.5 | 1-3 | 2.5×6×4.74 | ||
100-200 | 2 hydraulic stations + 4 hydraulic cylinders | 103 | 11×2 | 4-10 | 5×8×2.58 |
143 | 11×2 | 4-10 | 5×8×3.58 | ||
189 | 11×2 | 4-10 | 5×8×4.74 | ||
200-300 | 2 hydraulic stations + 4 hydraulic cylinders | 229 | 11×2 | 4-10 | 5×8×5.74 |
